Home Lab

This is the second iteration of the home lab. I traded a 16U rack mounted in a box made of 2x4s for the current setup of 2 8U racks made of lighter, more attractive wood. Why wood? Easy - It looks better in the office, and it's got a higher DIY factor. Someday I'll build a full-wall shelving system to mount the whole set-up in.


Network Rack

net rack
Position Device
8 24 port keystone panel
7 10G 8port Multiswitch
6 1G 16port POE Switch
5 Edgerouter 4 1/1G (backup)
4 blank
3-2 OpnSense 2.5/2.5G
1 550W UPS

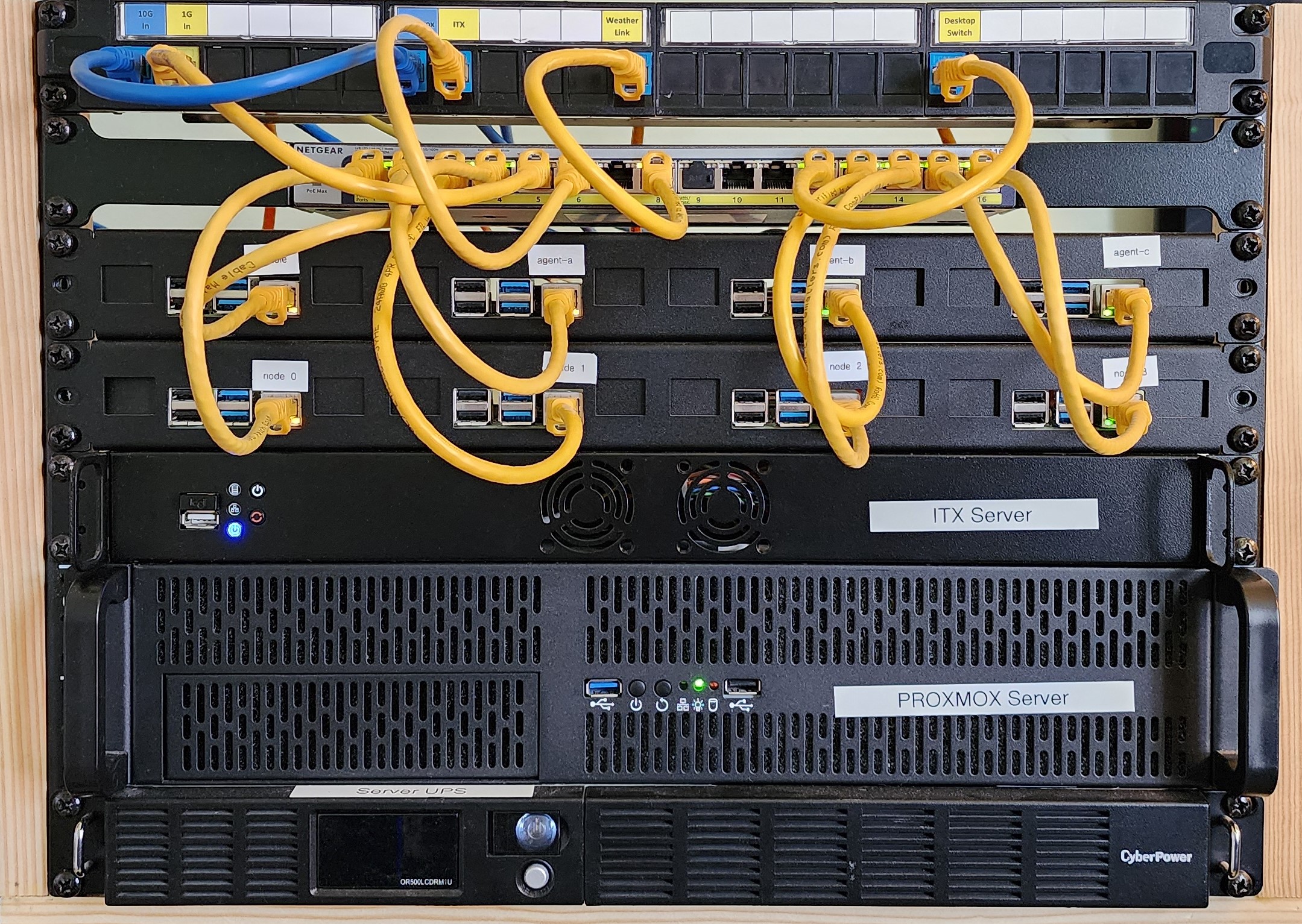

Server Rack

server rack
Position Device
8 24 port keystone panel
7 16port POE switch
6 4 rPi4 Agents
5 4 node rPi4 cluster
4 Mini-itx Debian 12
3-2 Proxmox
1 550W UPS

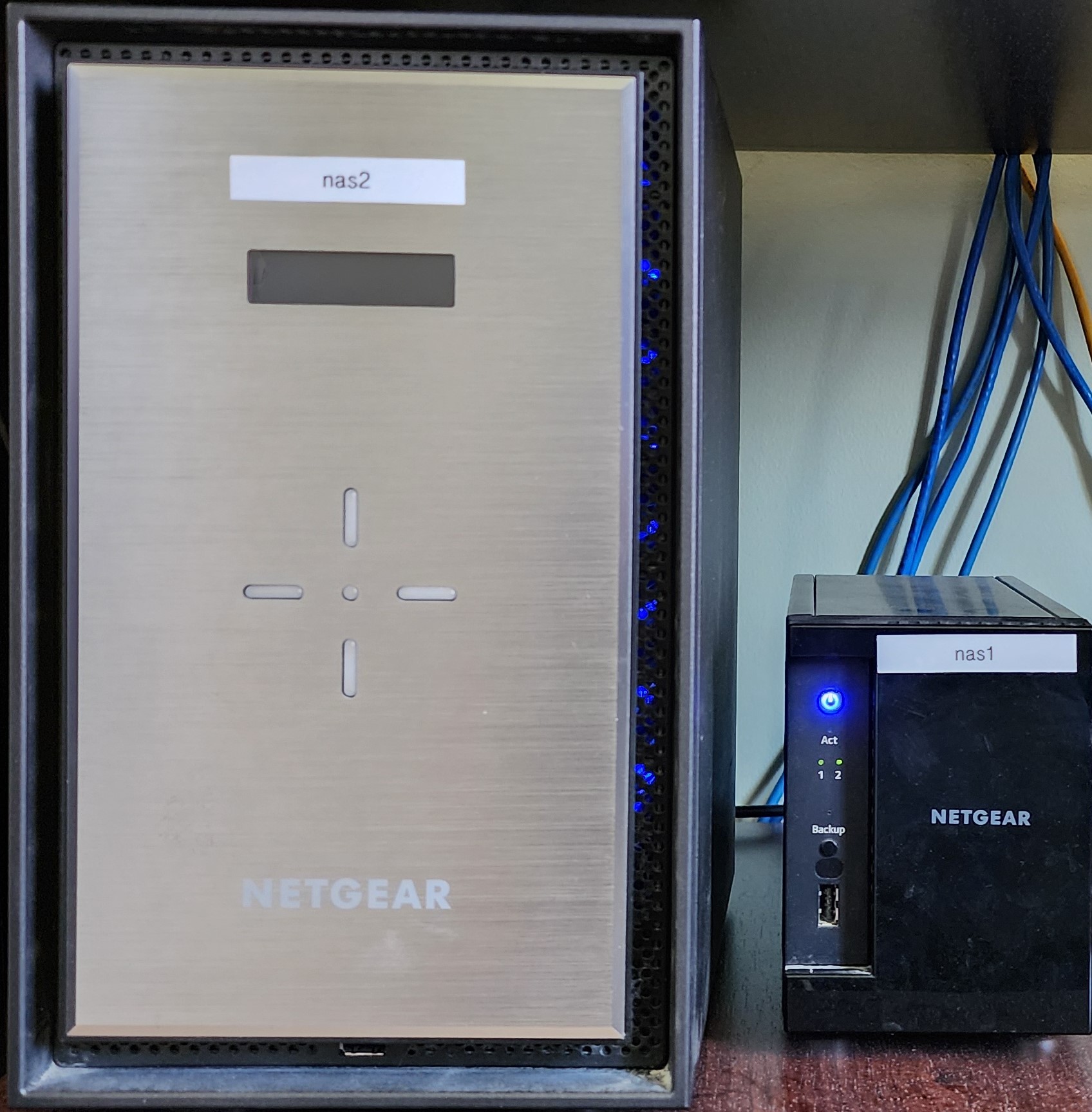

NAS1 & NAS2

nas
Name Volume RAID Net Size Detail
nas1 0 1 1gbps 4TB 7200rpm SATA III
nas2 0 0 10gbps 2TB ssd SATA III
nas2 1 10 10gbps 12TB 7200rpm SATA III
